Understanding the Critical Role of Poor Welding Pressure Vessel Integrity Issues
Pressure vessels play a critical role in countless industrial applications by containing liquids and gases under significant pressure. Manufacturers must construct these vessels to withstand tremendous forces, and the welded joints must maintain integrity for safe operation. When manufacturers compromise the quality of welding, the consequences can be catastrophic—leading to equipment damage, environmental hazards, serious injuries, and even fatalities.
Welds act as the “connective tissue” of pressure vessels, sealing and creating a continuous structure that safely contains pressurized media. Unlike mechanical connections such as bolted flanges, welded joints become an integral part of the vessel itself, ideally forming a seamless bond between components that is as strong as the base material.
However, this critical role also makes welds the most vulnerable part of any pressure vessel. Under normal operating conditions, pressure vessels experience significant stress, which concentrates at welds. When manufacturers perform poor welding, these welds become the weakest link in the pressure boundary, often serving as the initiation point for failures.
Poor welding directly impacts the quality and lifespan of pressure vessels. A properly executed weld, performed to code requirements, ensures a pressure vessel serves its entire design life—often decades. Conversely, a single instance of poor welding can reduce a vessel’s functional lifespan to weeks or even days.
Common Poor Welding Pressure Vessel Defects That Lead to Failure
Several types of poor welding pressure vessel defects consistently appear in failure analyses:
- Incomplete Fusion and Lack of Penetration: These occur when the weld metal fails to properly bond with the base material or previous weld passes. These defects create internal cracks that dramatically reduce the weld’s strength. Under pressure loading, these weak points allow crack initiation and rapid propagation.

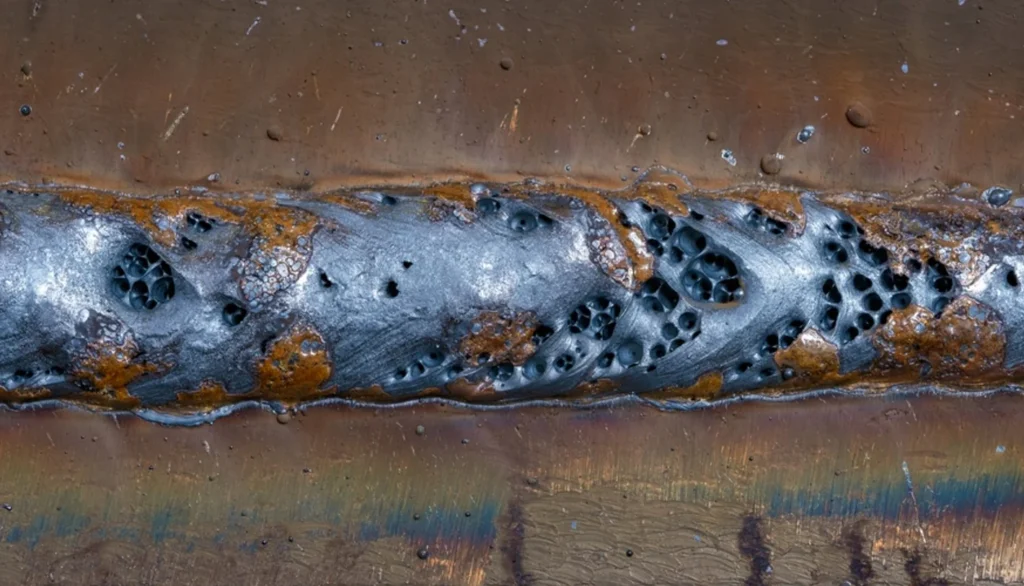

- Porosity and Inclusion Defects: These defects represent voids or foreign material trapped within the weld metal. While small, isolated pores may not significantly impact performance, clustered porosity creates stress concentration points that can lead to failure. Inclusions of slag or other contaminants contribute to poor welding and serve as crack initiation sites.
- Misalignment and Dimensional Issues: Misalignment creates stress concentrations that design calculations fail to account for. Even when a weld’s metallurgical quality is perfect, misalignment can lead to secondary stresses that result in premature failure, particularly under cyclic loading conditions.
- Cracking: Cracking in various forms represents one of the most dangerous poor welding defects. Hot cracks form during solidification due to inappropriate filler metal selection or poor technique. Cold cracks develop after cooling and are often hydrogen-induced. Stress corrosion cracking can develop over time in service. All these cracks create pathways for catastrophic failure.
- Heat-Affected Zone Weaknesses: These weaknesses occur adjacent to the weld, where the base metal’s properties have been altered by the welding thermal cycle. Improper pre-heat, interpass temperature control, or post-weld heat treatment can create brittle regions susceptible to failure, further evidencing poor welding practices.
Real-World Consequences of Poor Welding Pressure Vessel Failures
The consequences of poor welding pressure vessel failures rarely stay contained to just equipment damage. In 2017, a pressure vessel at a pharmaceutical plant in California suffered a catastrophic weld failure, releasing pressurized steam that seriously injured multiple workers. Post-incident investigations revealed incomplete fusion in a critical seam weld that had gone undetected during fabrication— a classic example of poor welding.
Similarly, a 2019 incident at a chemical processing facility in Texas resulted from a pressure vessel rupture along a longitudinal weld. The investigation identified porosity and slag inclusions that had passed visual inspection but represented significant structural weaknesses. This failure released hazardous chemicals, caused millions in damages, and forced a facility-wide shutdown for three months.
Beyond immediate human safety impacts, poor welding pressure vessel failures often create significant environmental hazards. When vessels containing toxic, flammable, or environmentally harmful substances fail, these materials are released uncontrollably. Cleanup costs often exceed direct equipment damage by orders of magnitude.
Prevention Strategies: Avoiding Poor Welding Pressure Vessel Issues
Preventing poor welding pressure vessel failures begins with proper welder qualification and certification. Welders performing pressure vessel work must demonstrate proficiency through testing as specified in ASME Section IX or equivalent standards. They must maintain these qualifications through regular documentation of continued practice.
Equally important is the development and validation of Welding Procedure Specifications (WPS). These documents detail every essential variable of the welding process—from materials and processes to techniques and parameters. Each WPS must undergo testing to verify it produces welds with appropriate mechanical properties and avoids poor welding issues.
Non-destructive testing (NDT) serves as the final verification to detect poor welding. Radiographic testing (RT) can detect internal defects like porosity and lack of fusion. Ultrasonic testing (UT) efficiently examines volumetric integrity. Magnetic particle testing (MT) and liquid penetrant testing (PT) identify surface-breaking defects. The appropriate NDT methods must get selected based on material type, thickness, and the critical nature of the joint.
Quality control systems that ensure comprehensive documentation of qualifications, procedures, inspections, and test results provide traceability and accountability. These records are not just regulatory requirements—they’re essential tools for ensuring all quality measures have been properly implemented to prevent poor welding pressure vessel failures.
The consequences of poor welding pressure vessel construction extend far beyond immediate repair costs. The potential for catastrophic failure, with associated human, environmental, and business impacts, makes weld quality an investment rather than an expense. Organizations that prioritize excellence in pressure vessel welding protect not only their assets but also their people, communities, and reputation.
Need a reliable partner?
Red River specializes in the design and manufacturing of pressure vessels. We also fabricate related items such as prefabricated spools and skid packages.
Reach out to us today and experience the Red River difference. Where American-made products and American Values come together, we care more.
Frequently Asked Questions
1. How can you identify a potentially dangerous weld in a pressure vessel?
Visual indicators include irregular weld bead appearance, excessive spatter, undercutting along the weld edges, and evidence of repairs. Surface-breaking cracks may appear as fine lines, often with rust or staining emerging from them in service.
2. What testing methods are required for pressure vessel welds?
ASME Section VIII and other pressure vessel codes specify testing requirements based on material, service conditions, and joint type. Typically, radiographic testing (RT) or ultrasonic testing (UT) is required for full penetration butt welds in the pressure boundary. Magnetic particle testing (MT) or liquid penetrant testing (PT) is commonly required for fillet welds and partial penetration joints.
3. How long can a pressure vessel with substandard welds remain in service before failing?
This varies dramatically based on the defect type, location, operating pressure, temperature fluctuations, and material properties. Some severe defects like through-wall cracks may cause immediate failure upon initial pressurization. More commonly, vessels with significant but not catastrophic defects might operate for weeks to months before failing.
4. Can a pressure vessel with defective welds be repaired rather than replaced?
Yes, under specific conditions. ASME Section VIII allows repairs to defective welds, but repairs must follow qualified procedures, be performed by certified welders, undergo the same level of examination as the original weld, and be properly documented. Multiple repairs to the same area generally require engineering evaluation.
5. What qualifications should pressure vessel welders have?
Pressure vessel welders should be qualified in accordance with ASME Section IX or an equivalent standard. Qualifications must cover the specific welding processes, positions, materials, and thicknesses relevant to the work being performed. Documentation must demonstrate that qualifications remain current through either continuous employment using the qualified processes or periodic requalification testing.
6. How do environmental factors affect weld integrity in pressure vessels?
Environmental factors can significantly impact weld performance. Corrosive service can preferentially attack weld metal or heat-affected zones if improper filler materials were used. Cyclic temperature fluctuations create thermal stresses that concentrate at welded joints.
7. What documentation should accompany pressure vessel welding to ensure compliance?
Comprehensive documentation includes welder qualification records (WQR), welding procedure specifications (WPS), procedure qualification records (PQR), material test reports (MTR) for both base materials and filler metals, heat treatment records, non-destructive examination reports, and repair documentation if applicable.
Key Takeaways
- Welding quality directly impacts pressure vessel safety and reliability, with welds often being the first point of failure
- Common defects like incomplete fusion, porosity, misalignment, and cracking dramatically reduce a vessel’s ability to contain pressure safely
- Real-world pressure vessel failures have resulted in injuries, environmental damage, and significant financial losses
- Prevention requires a comprehensive approach including proper welder qualification, validated procedures, and appropriate testing
- Regular inspection throughout a vessel’s service life is essential to identify developing issues before failure occurs
- Documentation and quality control systems provide the accountability and traceability needed for safe pressure vessel operation
