What Are the Basics of Pressure Vessels?
Introduction to Pressure Vessels
Pressure vessels are critical components in many industrial settings, playing a pivotal role in safely containing gases and liquids under pressure. From refineries and chemical plants to power generation facilities and beyond, these vessels are essential for operations that require controlled environments.
Defined broadly, a pressure vessel is any container designed to hold substances at a pressure significantly different from ambient pressure. Because of the dangers associated with high-pressure systems, the design, fabrication, operation, and inspection of pressure vessels are subject to rigorous standards and codes.
Industries such as oil and gas, energy, petrochemical, and manufacturing heavily depend on pressure vessels. At Red River, our commitment to safety, quality, and American values ensures every vessel we produce is built to meet and exceed industry standards. Learn more about our pressure vessel capabilities.
Types of Pressure Vessels
There is no one-size-fits-all when it comes to pressure vessels. Different applications require unique designs and specifications. Here are the most common types:
Horizontal vs. Vertical Vessels
- Horizontal Vessels: Typically used for gas-liquid separation or storage. Their horizontal orientation allows for better gravity separation.
- Vertical Vessels: Often used when space is a constraint or when dealing with taller column operations such as distillation or absorption.
Shape Classification
- Cylindrical Vessels: The most common due to ease of fabrication and strength under internal pressure.
- Spherical Vessels: Offer better stress distribution and are ideal for storing large volumes of gas.
- Conical Vessels: Used in processes requiring easy discharge of solids or semi-solids.
Based on Function
- Storage Tanks: Hold substances for later use, either under pressure or atmospheric conditions.
- Heat Exchangers: Transfer heat between fluids within the pressure vessel.
- Reactors: Facilitate chemical reactions under pressure and often at high temperatures.
Common Materials Used
- Carbon Steel: Widely used due to cost-effectiveness and moderate corrosion resistance.
- Stainless Steel: Offers superior resistance to corrosion and high temperatures.
- Alloy Steels: Chosen for specific properties like high tensile strength or resistance to certain chemicals.

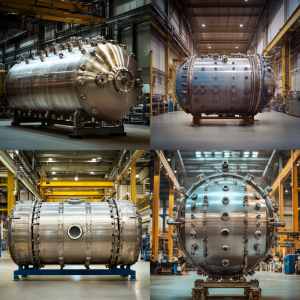

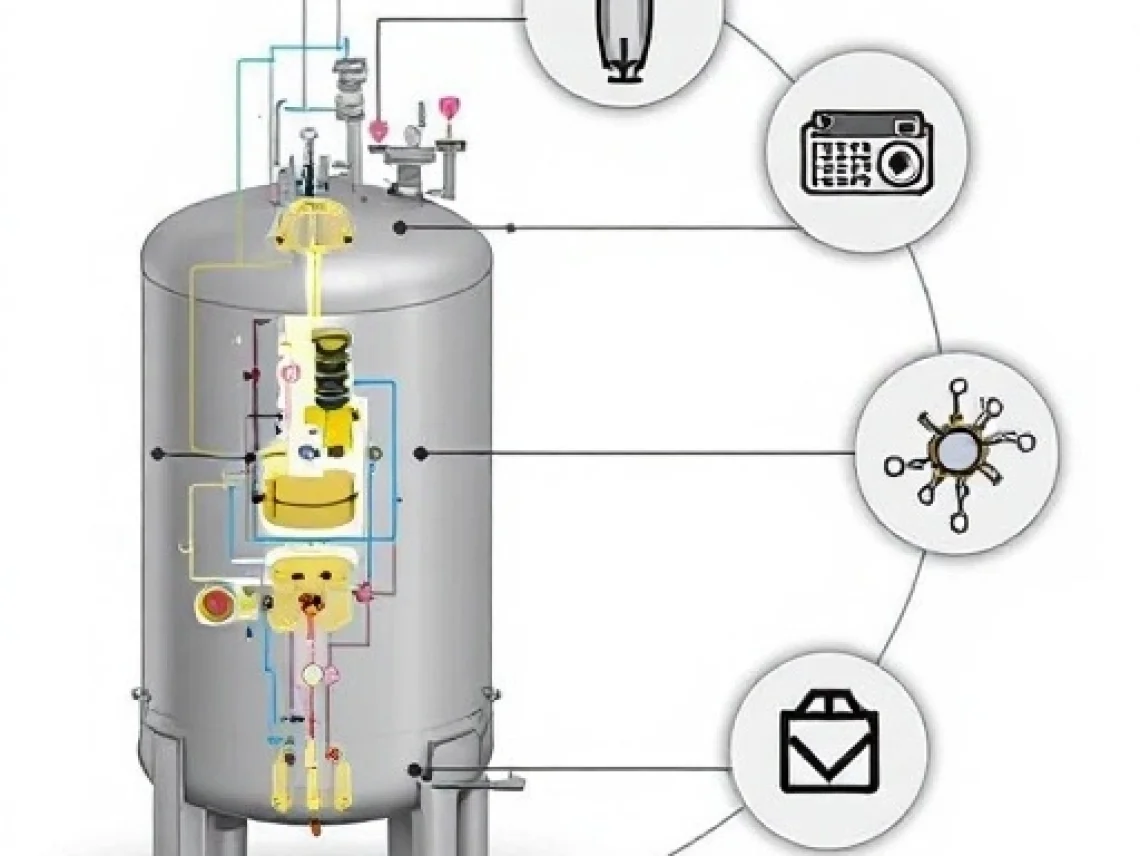

Core Components of a Pressure Vessel
Understanding the anatomy of a pressure vessel helps clarify its operation and safety requirements:
Shell
The primary body of the pressure vessel. It holds the substance under pressure and must be structurally sound to withstand internal stresses.
Heads
These are the end caps of the pressure vessel. Common types include:
- Elliptical Heads: Balance strength and cost.
- Hemispherical Heads: Strongest but most expensive.
- Flat Heads: Economical but least resistant to pressure.
Nozzles and Manways
- Nozzles: Serve as the inlet/outlet points for fluids.
- Manways: Allow human access for inspection and maintenance.
Supports
- Skirt Supports: Used for vertical vessels.
- Saddle Supports: Cradle the vessel horizontally.
- Leg Supports: Simpler support for small vessels.
Pressure Vessel Design and Standards
Due to the hazardous nature of pressurized contents, pressure vessels are designed under strict codes and standards to ensure safety.
Governing Codes
- ASME Section VIII: The most widely adopted standard in the U.S. and internationally, covering design, materials, fabrication, and inspection.
- API Standards: Provided by the American Petroleum Institute, particularly for vessels used in oil and gas applications.
Key Design Considerations
- Pressure and Temperature Ratings: The vessel must be designed to withstand maximum operating conditions.
- Corrosion Allowance: A margin included to account for material degradation over time.
- Stress Analysis: Ensures structural integrity under various load conditions.
Testing and Inspection
Before a vessel is certified for use, it undergoes various non-destructive tests (NDT):
- Hydrostatic Testing: The vessel is filled with water and pressurized to ensure it doesn’t leak or deform.
- Radiographic Testing: X-rays check for internal weld defects.
- Ultrasonic Testing: High-frequency sound waves detect flaws and measure wall thickness.
Safety Features and Maintenance
Safety is paramount in pressure vessel design and operation. Proper maintenance and fail-safes can prevent catastrophic failures.
Safety Devices
- Relief Valves: Automatically release excess pressure.
- Rupture Discs: Burst at predetermined pressures to prevent over-pressurization.
Inspection and Maintenance
Regular maintenance schedules are essential. Depending on the industry and regulations, inspections may occur annually or every few years.
Maintenance includes:
- Visual inspections
- Ultrasonic thickness testing
Replacement of worn-out components
Risk Factors and Failure Modes
- Corrosion reduces wall thickness and weakens the structure.
- Fatigue: Caused by repeated pressure cycles.
- Improper Fabrication: Can lead to weld failures or stress concentrations.
Partnering with a trusted manufacturer is crucial. Contact Red River to ensure your pressure vessels are designed, built, and maintained to meet your needs.
Wrapping It Up: Understanding the Basics of Pressure Vessels
Whether you’re new to industrial equipment or seeking clarity on pressure vessel components and uses, grasping these basics helps ensure informed decisions. From their structure and materials to safety measures and standards, pressure vessels play a critical role in countless industries. Getting familiar with how they work is the first step to using—or partnering on—equipment that’s built to last.
Need a reliable partner?
Frequently Asked Questions
1. What is a pressure vessel used for?
A pressure vessel is used to store gases or liquids under high pressure, typically in industries like oil and gas, power generation, and chemical manufacturing.
2. What materials are pressure vessels made from?
Common materials include carbon steel, stainless steel, and alloy steels, chosen based on pressure, temperature, and corrosion resistance.
3. What are ASME codes in relation to pressure vessels?
ASME codes provide standardized guidelines for the design, fabrication, and inspection of pressure vessels to ensure safety and reliability.
4. How are pressure vessels tested?
They undergo non-destructive testing such as hydrostatic testing, ultrasonic inspection, and radiographic examination to check integrity.
5. What causes pressure vessel failure?
Common causes include corrosion, overpressure, improper design, or poor maintenance. Regular inspection helps mitigate these risks.
6. What’s the difference between a tank and a pressure vessel?
A pressure vessel is specifically designed to withstand internal or external pressure, while a tank may not be designed for pressurized contents.
7. Are pressure vessels always made to order?
Not always. Some standardized vessels are available, but most industrial applications require custom design based on use-case specifications.
8. How often should pressure vessels be inspected?
Inspection frequency depends on regulatory standards and usage, but typically ranges from annually to every few years.
Key Takeaways
- Pressure vessels store gases or liquids under high pressure.
- They come in various types and shapes, including cylindrical and spherical.
- Critical components include the shell, heads, nozzles, and supports.
- Designed under strict standards like ASME for safety and performance.
- Regular maintenance and testing are essential to prevent failure and ensure long-term use.
