Pressure Vessel Fabrication Tasks

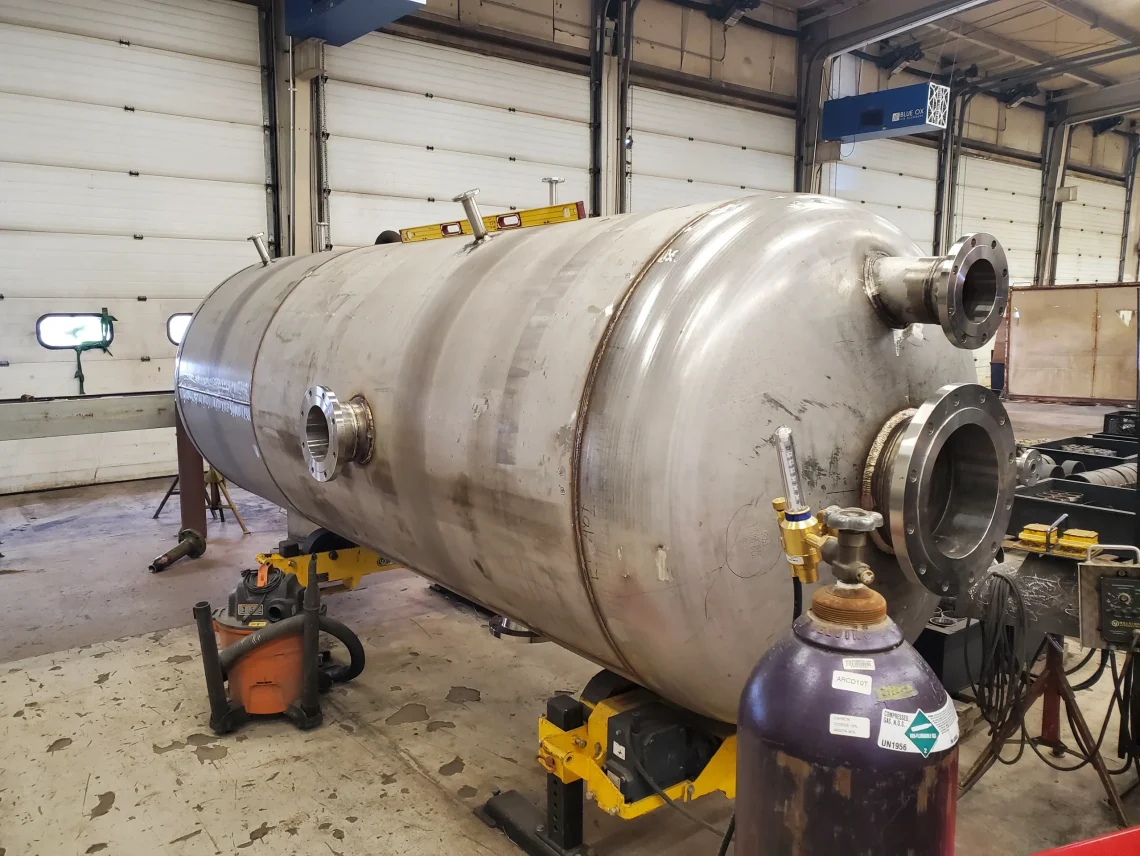

Pressure Vessels

Understanding Pressure Vessel Fabrication

Pressure vessels are specialized containers designed to hold gases or liquids at a pressure substantially different from the ambient pressure. These vessels play a pivotal role in numerous industries, including oil and gas, chemical processing, power generation, and pharmaceuticals, to name a few. Their applications range from simple compressed air storage tanks in workshops to intricate reactors in petrochemical plants.

The significance of pressure vessels in these industries cannot be understated. They are integral to processes that require controlled pressure environments, ensuring that reactions occur safely and efficiently. For instance, in the petrochemical industry, pressure vessels are used to contain reactions that produce everyday products like plastics and synthetic materials. Similarly, in the power generation sector, they are essential components in boilers and steam generators.

Given the critical nature of their applications, the fabrication of pressure vessels is of paramount importance. Fabrication refers to the process of designing, cutting, shaping, and assembling the vessel to ensure it meets the required specifications and standards. A well-fabricated pressure vessel not only ensures the safety of the operations and the people around it but also enhances the efficiency and longevity of the vessel. Any compromise in the fabrication process can lead to catastrophic failures, resulting in loss of property, environment, and even life.

Definition of Pressure Vessel Fabrication:

At its core, pressure vessel fabrication is the art and science of designing, constructing, and testing vessels that can withstand extreme pressure levels. It’s not just about welding metal pieces together; it’s about ensuring that every vessel can handle the stresses and strains of its intended use without failure.

The Role of Fabrication in the Lifecycle of a Pressure Vessel:

  • Design Phase: Before any physical work begins, engineers use software tools to design the vessel. This design phase considers factors like the intended use of the vessel, the materials it will contain, and the conditions it will operate. The design must also adhere to industry standards and regulations to ensure safety.
  • Construction Phase: Once the design is finalized, the actual fabrication begins. This involves cutting, shaping, and assembling the vessel’s components. Skilled welders use various techniques to join these components, ensuring that every seam is strong and leak-proof.
  • Testing Phase: After the vessel is assembled, it undergoes rigorous testing. This ensures that it can handle its intended pressure levels without any leaks or weaknesses. Non-destructive testing methods, such as ultrasonic and radiographic testing, are often used to inspect the vessel’s integrity.
  • Maintenance and Repair: Even after a pressure vessel is in use, the fabrication process plays a role in its lifecycle. Regular inspections and maintenance are crucial to ensure the vessel remains safe. If any issues are detected, the vessel may need to be repaired or even re-fabricated.

Key Activities in Pressure Vessel Fabrication

Material Selection Choosing the right material is paramount in pressure vessel fabrication. The material’s properties directly influence the vessel’s durability, safety, and performance.

  • Importance of Material Selection:

    The material must withstand the internal pressures, temperatures, and chemical properties of the stored substance. An incorrect material choice can lead to catastrophic failures, endangering both personnel and the environment.
  • Common Materials and Their Properties:
    • Carbon Steel: Known for its durability and cost-effectiveness. It’s suitable for a wide range of applications but can corrode if not properly treated.
    • Stainless Steel: Offers excellent corrosion resistance, making it ideal for vessels storing aggressive chemicals.
    • Alloy Materials: Such as Hastelloy or Inconel, are used for specific applications requiring resistance to high temperatures or specific chemicals.

Design and Engineering The design phase is where the vessel starts to take shape, ensuring it meets the required specifications and safety standards.

  • Role of CAD in Vessel Design: Computer-Aided Design (CAD) software allows engineers to create detailed 3D models of the vessel, simulating its performance under various conditions and making necessary adjustments before the physical fabrication begins.
  • Compliance with Industry Standards: It’s crucial to adhere to standards set by bodies like the American Society of Mechanical Engineers (ASME). These standards ensure the vessel’s safety and performance throughout its operational life.

Cutting and Shaping Once the design is finalized, the fabrication process begins with cutting and shaping the chosen material.

  • Cutting Techniques:
    • Plasma Cutting: Uses a plasma torch to cut through thick materials.
    • Laser Cutting: Offers precision cuts, especially for intricate designs.
    • Water Jet Cutting: Uses high-pressure water mixed with abrasives to cut through materials without heat, reducing the risk of material warping.
  • Importance of Precision: Accurate cuts and shapes are vital to ensure the vessel’s components fit perfectly, ensuring safety and performance.

Welding and Assembly The vessel’s components are then welded together to form a complete structure.

  • Welding Methods:
    • TIG (Tungsten Inert Gas) Welding: Known for its precision and clean welds.
    • MIG (Metal Inert Gas) Welding: Faster than TIG and suitable for thicker materials.
    • Submerged Arc Welding: Used for very thick materials, offering deep penetration.
  • Ensuring Leak-Proof Joints: Proper welding ensures that the vessel remains leak-proof, a critical factor in maintaining its integrity and safety.

Heat Treatment After welding, the vessel undergoes heat treatment to enhance its material properties.

  • Purpose: Heat treatment relieves stresses caused by welding, improves the material’s toughness, and increases its resistance to wear and corrosion.
  • Common Methods:
    • Annealing: Slowly heating and then cooling to soften the material.
    • Normalizing: Heating to a specific temperature and then air-cooling to refine the material’s grain structure.
    • Quenching: Rapidly cooling the material to increase its hardness.

Inspection and Testing Before the vessel is commissioned, it undergoes rigorous inspections and tests.

  • Non-Destructive Testing Methods:
    • Ultrasonic Testing: Uses high-frequency sound waves to detect flaws within the material.
    • Radiographic Testing: Employs X-rays or gamma rays to inspect welds and detect internal defects.
  • Ensuring Vessel Integrity: These tests ensure that the vessel is free from defects that could compromise its safety. Only after passing these tests is the vessel deemed fit for operational use.

Quality Control in Fabrication

  • Quality control is an indispensable aspect of pressure vessel fabrication. Ensuring that each step of the fabrication process meets the highest standards of quality is not just about producing a functional product; it’s about guaranteeing safety, durability, and efficiency.

Importance of Adhering to Quality Standards:

  • Safety First: Pressure vessels operate under extreme conditions, often holding hazardous materials at high pressures. Any compromise in quality can lead to catastrophic failures, endangering lives and causing significant property damage.
  • Operational Efficiency: A well-fabricated pressure vessel ensures optimal performance. Adhering to quality standards means fewer operational hitches, reduced downtime, and extended equipment lifespan.
  • Economic Implications: While high-quality fabrication might seem costly initially, it pays off in the long run. Fewer breakdowns mean reduced maintenance costs and minimized production losses.
  • Regulatory Compliance: Many industries have strict regulations governing the design, fabrication, and operation of pressure vessels. Meeting quality standards ensures compliance, avoiding legal complications and potential fines.

Role of Certifications like ASME (American Society of Mechanical Engineers):

  • Standardization: ASME provides universally recognized standards for the design, fabrication, and inspection of pressure vessels. These standards ensure consistency in quality across the industry.
  • Credibility: An ASME certification is a mark of credibility. It assures clients and stakeholders that the pressure vessel has been fabricated to meet the highest industry standards.
  • Continuous Improvement: ASME regularly updates its standards to incorporate the latest research, technology, and best practices. This ensures that certified pressure vessels are always at the forefront of safety and innovation.
  • Global Recognition: ASME standards are recognized and respected globally. A pressure vessel with ASME certification can be used anywhere in the world, making it easier for businesses to expand their operations internationally.

Modern Innovations in Pressure Vessel Fabrication

  • In the rapidly evolving world of manufacturing and engineering, pressure vessel fabrication has not been left behind. The sector has seen a surge in technological advancements that not only enhance efficiency but also improve the quality and safety of the end products. Here’s a closer look at some of the most notable innovations:

Automation and Robotics in Fabrication

The integration of automation and robotics into the fabrication process has revolutionized how pressure vessels are made. These technologies offer several advantages:

  • Precision and Consistency: Robots are programmed to perform tasks with high accuracy, ensuring that each part of the vessel meets the exact specifications.
  • Increased Productivity: Automated systems can operate continuously without fatigue, leading to faster production rates.
  • Safety: With robots handling more hazardous tasks, there’s a reduced risk of workplace injuries, especially in processes that involve high temperatures or heavy materials.

Advancements in Welding Technology

Welding is a critical aspect of pressure vessel fabrication, and its technology has seen significant improvements:

  • Friction Stir Welding (FSW): A solid-state joining process that uses a non-consumable tool to join two facing workpieces without melting the workpiece material. It’s especially useful for materials like aluminum.
  • Laser Hybrid Welding: Combines the principles of laser beam welding and arc welding, offering faster welding speeds and deeper penetration.
  • Adaptive Welding: Uses sensors and control systems to adapt the welding parameters in real-time, ensuring optimal weld quality.

Software Tools for Improved Design and Testing

The digital transformation has brought forth software solutions that enhance the design, simulation, and testing phases of pressure vessel fabrication:

  • Advanced CAD Tools: Modern CAD software offers 3D modeling, simulation, and analysis capabilities, allowing engineers to visualize and optimize their designs before fabrication begins.
  • Finite Element Analysis (FEA): Used to simulate and analyze the strength, durability, and thermal performance of a pressure vessel under various conditions.
  • Non-Destructive Testing (NDT) Software: Modern NDT software tools can analyze data from tests like ultrasonic testing or radiographic testing more efficiently, ensuring that any defects or inconsistencies are promptly detected.

Ready to Elevate Your Project with Red River?

Contact Us Today:
Don’t just take our word for it. Reach out and experience our commitment to excellence firsthand.

Discover the Red River Difference:
Join the ranks of satisfied clients who have experienced the Red River advantage in pressure vessel manufacturing.

Let’s Build the Future Together!

Red River– Where Quality Meets Innovation in Pressure Vessel Manufacturing.

FAQ: Pressure Vessel Fabrication Tasks

What are the key stages in the fabrication of a pressure vessel?

The key stages in pressure vessel fabrication include design and engineering, material selection, cutting and forming, welding, testing and inspection, and finishing. Each stage is critical to ensure the vessel meets the required safety standards and operational specifications.

How is the material for a pressure vessel selected?

Material selection for a pressure vessel is based on the vessel’s intended use, including the type of substance it will contain, the operating pressure and temperature, and the environment in which it will be used. Common materials include carbon steel, stainless steel, and alloys designed for specific conditions, such as high temperature or corrosive environments.

What role does welding play in pressure vessel fabrication, and how is quality ensured?

Welding is a critical task in pressure vessel fabrication, as it ensures the integrity and strength of the vessel. Quality is ensured through the use of certified welders, adherence to welding procedures specified in the design, and rigorous testing and inspection, including non-destructive testing (NDT) methods like radiography, ultrasonic testing, and magnetic particle inspection.

Can pressure vessels be fabricated in any shape or size?

While pressure vessels can be fabricated in a wide range of shapes and sizes to meet specific requirements, their design is often constrained by manufacturing capabilities, transportation logistics, and safety regulations. Cylindrical shapes with hemispherical or dished ends are common due to their ability to evenly distribute stress.

What testing methods are used to ensure the safety and integrity of a pressure vessel?

Testing methods used to ensure the safety and integrity of a pressure vessel include hydrostatic testing, where the vessel is filled with water and pressurized to check for leaks and strength; pneumatic testing, using air or gas; and various NDT methods to detect surface and subsurface flaws.
