Understanding the Pressure of Nitrogen Gas Key Concepts and Applications

Liquid nitrogen, a cryogenic fluid cooled below -320°F (-196°C), is widely used in medicine, manufacturing, food, and science. Its critical pressure is 492 psia (3.4 MPa) above this, nitrogen becomes a supercritical fluid, which can compromise vessel safety. Maintaining pressure well below this threshold is essential. Engineers must consider temperature, material stress, and safety protocols (PPE, relief valves, monitoring) to design reliable systems. Red River provides custom cryogenic vessels optimized for safe, stable performance across industries.

Introduction to Liquid Nitrogen

Liquid nitrogen is a cryogenic liquid formed by cooling nitrogen gas below -320°F (-196°C). It’s widely used in industrial, medical, and scientific applications where ultra-low temperatures are essential. Understanding its critical pressure of 492 psia (3.4 MPa) is vital for designing safe, efficient storage systems and preventing supercritical phase risks.

What Is the Critical Pressure of Nitrogen?

The critical pressure is the pressure required to liquefy a gas at its critical temperature. For nitrogen, the critical temperature is 227.1 K (-46°C) and the critical pressure is 492 psia. Above this point, nitrogen exists only as a supercritical fluid.

Engineers must account for this when designing pressure vessels and phase-change applications. Failing to stay below the critical pressure can compromise storage efficiency and system safety.

Factors Affecting Pressure in Liquid Nitrogen Vessels

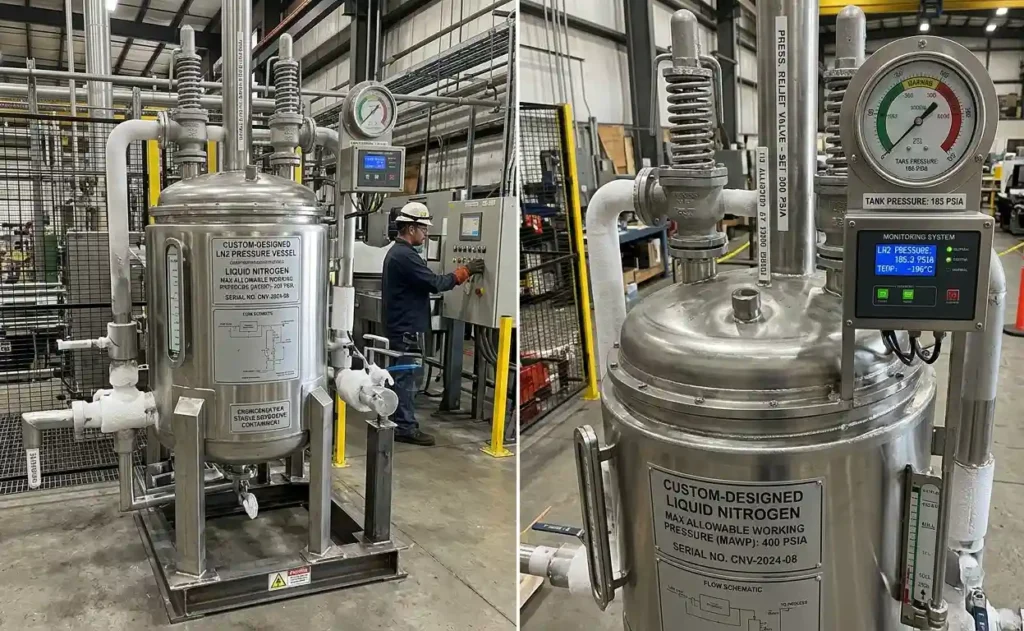

In addition to external temperature and vessel design, another essential factor is the relationship between operating pressure and the critical pressure of nitrogen. Systems operating near or above 492 psia must avoid phase instability and potential material stress due to supercritical conditions. Our engineers design vessels to maintain optimal pressure and avoid supercritical risks see how Red River implements precise pressure control in cryogenic vessels for added reliability.

Common Applications of Liquid Nitrogen

Liquid nitrogen is used across several industries:

• Medical: cryopreservation, dermatological treatments
• Manufacturing: shrink fitting, coolant for CNC machining
• Food: flash-freezing and transportation
• Science: cooling superconductors and particle experiments

These practical uses make stable pressure control and awareness of critical thresholds a design priority. Red River customizes cryogenic vessels for medical preservation, aerospace fuel storage, manufacturing processes, and more.

Safety Considerations

Safety is paramount when handling liquid nitrogen due to its extreme cryogenic temperatures and pressure-related hazards. Risks from overpressure include vessel rupture, exposure to cryogenic fluids, and oxygen displacement, which may lead to asphyxiation. Following OSHA safety standards and using gear like insulated gloves, goggles, and pressure relief valves is critical.

Monitoring and Maintaining Pressure

Regular tracking and protection are essential to make certain top-of-the-line pressure ranges within liquid nitrogen vessels. Techniques including pressure gauges and sensors permit operators to track pressure versions accurately. Additionally, proactive upkeep practices assist prevent pressure-associated troubles and ensure the toughness of the vessel.

Need a reliable partner?​

Red River specializes in the design and manufacturing of pressure vessels. We also fabricate related items such as prefabricated spools and skid packages.

Reach Out to us today and experience the Red River difference. Where American Made and American Values come together, we care more.

Frequently Asked Questions

What is the critical pressure of nitrogen?

It’s 492 psia, the threshold pressure above which nitrogen cannot exist in a purely liquid state, regardless of temperature.

Why does it matter for pressure vessels?

Design standards must ensure vessels operate well below 492 psia unless engineered for supercritical fluid containment.

What are safe pressure ranges in a liquid nitrogen tank?

Typically, liquid nitrogen vessels operate between 70 to 145 psi (5 to 10 bar) depending on design, insulation, and ambient temperature. Engineers must ensure tanks stay well below the critical pressure of 492 psia unless specifically rated for supercritical containment.

How do temperature versions affect the pressure in a liquid nitrogen vessel?

Temperature fluctuations have a considerable impact on the pressure inner a liquid nitrogen vessel. As the temperature rises, the nitrogen gas within the vessel expands, increasing the pressure. Conversely, whilst the temperature decreases, the nitrogen fuel contracts, resulting in a lower pressure. To hold safe running conditions, it’s essential to consider temperature adjustments and enforce appropriate measures to alter pressure ranges, together with pressure remedy valves and insulation.

What safety measures should be in place when handling liquid nitrogen?

Key practices include:

• Wearing PPE (insulated gloves, face shields)
• Ensuring ventilation to prevent oxygen depletion
• Using automated pressure relief valves
• Following OSHA and manufacturer guidelines
• Conducting routine inspections for frost, leaks, and pressure build-up

How do pressure comfort valves work in liquid nitrogen vessels?

Pressure relief valves are essential additives of liquid nitrogen vessels, designed to guard against overpressurization and ability vessel rupture. These valves function utilizing mechanically establishing whilst the inner pressure exceeds a predetermined threshold, allowing excess gas to break out and relieving the pressure in the vessel. By maintaining pressure within secure limits, pressure alleviation valves save you from catastrophic failures and ensure the safety of employees and equipment.

What are the results of flawed pressure control in liquid nitrogen vessels?

Improper pressure control in liquid nitrogen vessels can lead to numerous protection hazards and operational problems. Excessive pressure buildup can bring about vessel rupture, liberating cryogenic fluid and posing large dangers to employees and surrounding devices. Additionally, insufficient pressure control can also affect the performance and performance of tactics making use of liquid nitrogen, potentially compromising product satisfaction and consistency. It’s vital to prioritize the right pressure control to ensure the safe and dependable operation of liquid nitrogen structures.

Key Takeaways

• Critical Pressure Alert: Nitrogen’s critical pressure is 492 psia (3.4 MPa). Operating above this means it becomes a supercritical fluid not safe for standard vessels.
• Typical Operating Range: Most liquid nitrogen vessels run safely between 70–145 psi (5–10 bar).
• Design Matters: Pressure vessel designs must account for critical thresholds, insulation, and thermal expansion.
• Safety First: Use PPE, pressure relief valves, and follow OSHA standards to prevent injury or equipment failure.
• Industries Benefiting: Medical, manufacturing, food, and scientific sectors rely heavily on precise cryogenic control.
• Monitoring is Critical: Real-time pressure gauges and regular maintenance extend vessel life and improve safety.
