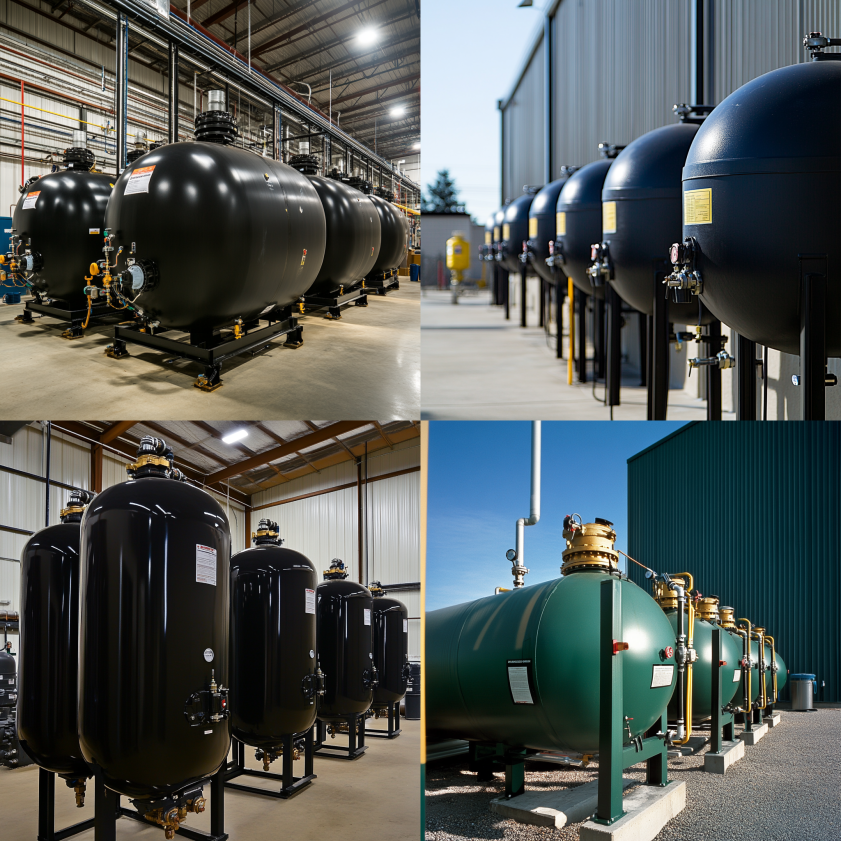

Before diving into the distinctions between wet and dry air receivers, it’s essential to understand the general role of an air receiver tank. In any compressed air system, fluctuations in demand can cause pressure instability and system inefficiencies. Air receivers act as a buffer between the compressor and the end-use equipment, ensuring consistent pressure and storing excess air for periods of high demand.
Depending on where the air receiver is located in the system—before or after the dryer—it is classified as either a wet or dry air receiver.
A wet air receiver is positioned directly after the air compressor and before the air dryer. At this stage, the compressed air is still hot and contains a significant amount of moisture, making it “wet.” The wet receiver’s main job is to act as the first line of moisture separation.
As compressed air enters the tank, it slows down. This drop in velocity allows moisture and oil vapors to condense and settle at the bottom of the tank, where they can be drained off.
Because the air is still unprocessed by the dryer, the wet receiver handles most of the initial condensation. Frequent draining (often automated via drain valves) is crucial to prevent water buildup.
A dry air receiver is located after the air has passed through the dryer, meaning the air inside is clean and moisture-free. The dry receiver functions as a storage and distribution point for this conditioned air.
Dry air receivers are essential in systems where pressure stability and air quality are critical, such as in laboratories, cleanrooms, and food-grade production environments.
Although both types serve the broader purpose of managing compressed air flow and storage, they do so in very different ways, and understanding these distinctions is key for system optimization.
Feature | Wet Air Receiver | Dry Air Receiver |
Placement | Before the air dryer | After the air dryer |
Air Type | Moist, hot, and potentially oily air | Clean, dry, and filtered air |
Primary Function | Moisture separation, cooling, and buffering | Storage and pressure stabilization |
Impact on Equipment | Protects the dryer | Supports end-use equipment |
Drainage Needs | High – must remove condensate regularly | Minimal to none |
Material Stress | Higher due to moisture and temperature | Lower, more stable environment |
When to Use | High-condensate or hot-air environments | Precise applications needing clean air |
For a deeper dive into compressed air system design, the Compressed Air Best Practices guide offers extensive resources.
Choosing between a wet and dry air receiver—or more likely, deciding how to integrate both into your compressed air setup—is about efficiency, reliability, and equipment longevity.
The difference between a wet air receiver and a dry air receiver goes beyond their placement in the system. It’s about recognizing what each does best and ensuring your system takes advantage of those benefits. When planned and implemented properly, these components contribute to:
If you’re evaluating your compressed air system or planning a new one, don’t overlook how essential proper receiver placement can be.
Red River specializes in the design and manufacturing of pressure vessels. We also fabricate related items such as prefabricated spools and skid packages.
Reach out to us today and experience the Red River difference. Where American-made products and American Values come together, we care more.
A wet air receiver helps remove bulk moisture and oil from compressed air before it enters the dryer, extending equipment lifespan and improving system efficiency.
A dry air receiver stores clean air and helps stabilize system pressure, ensuring reliable delivery during peak usage times.
Yes, many systems benefit from using both. Wet receivers protect the dryer, while dry receivers improve distribution and pressure control.
Yes. They must be drained frequently to prevent condensate buildup and may require corrosion-resistant coatings or filters due to exposure to moisture.
Receiver size depends on system demand, compressor size, and cycle frequency. ASME guidelines and manufacturer recommendations should be followed.
Not effectively. Each tank type is strategically placed and operates under different air quality conditions, so it’s best to use dedicated tanks.
Signs include frequent compressor cycling, pressure drops, or insufficient air during peak demand. System audits can identify sizing issues.
The Compressed Air & Gas Institute (CAGI) offers technical guides and standards for air system components and operation.
